Semi Lift Diaphragm Operated Plastic Solenoid Valve (NC)
Our Products
- Description
- Technical Data
- Features
- Dimension
Specifications
Port:
Refer below technical data sheet (Available BSP / BSPT / NPT)
End Connection:
Screwed
Body Material:
Nylon GF
Diaphragm & Media Temp:
Nitrile (NBR)
Media:
Water
Coil Features:
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Operating Voltage:
24AC | 24DC | 12DC |
Power Consumption:
8W | 8W | 8W |
Technical Data

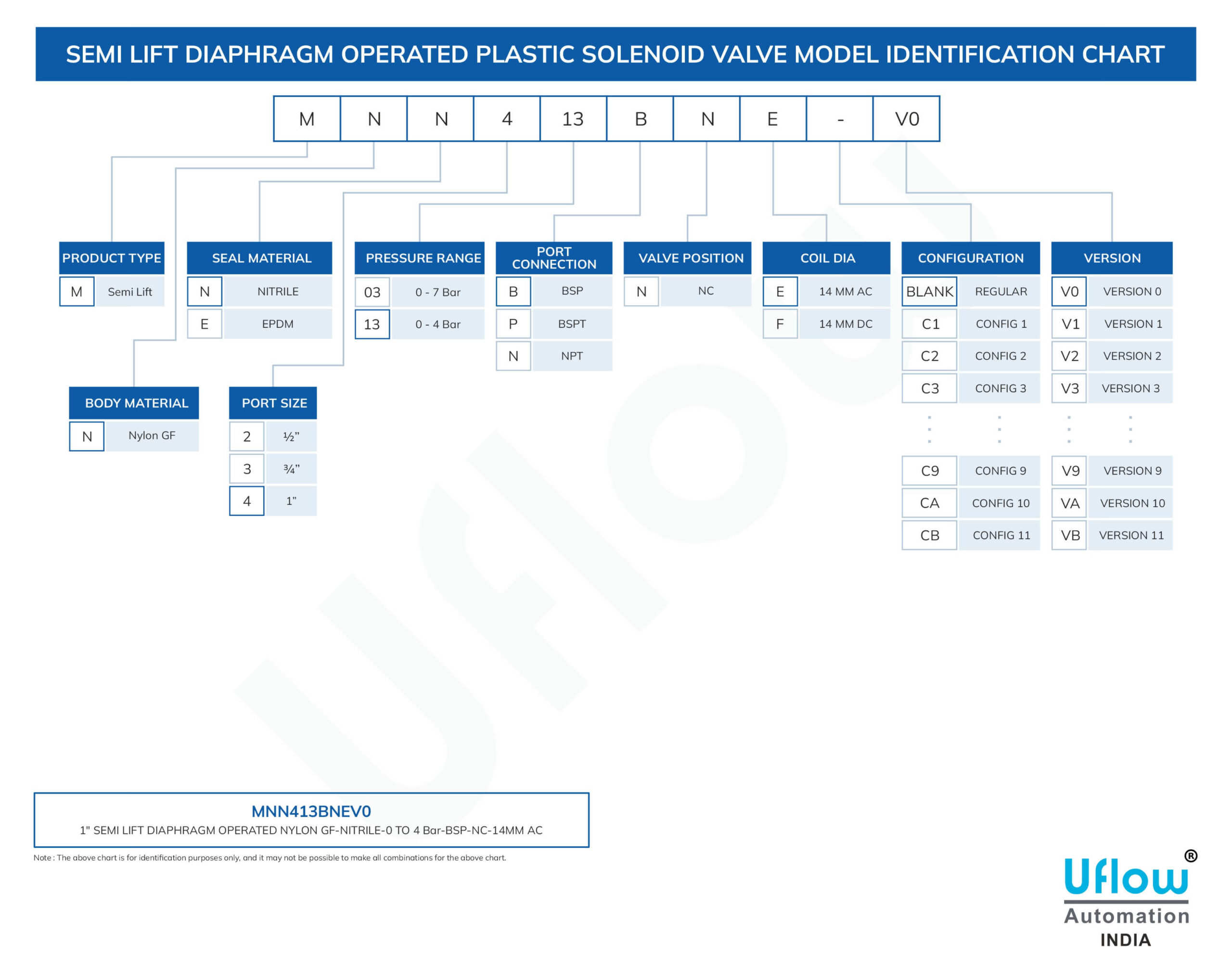

Model No. | Body Material | Pipe (Inch) | Orific (mm) | Min. Operating Pressure mbar | Max. Operating Pressure bar | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
---|---|---|---|---|---|---|---|
MNN203BNEV0 | Nylon GF | ½” | 16 | 0 | 7 | NBR | 2.1 |
MNN303BNEV0 | Nylon GF | ¾” | 16 | 0 | 7 | NBR | 3 |
MNN413BNEV0 | Nylon GF | 1” | 26 | 0 | 4 | NBR | 8.2 |
- Inbuilt Flow Control Capabilities.
- Manual Override in All The Valve.
- Pressure Below Seat to Reduce Water Hummer
- Low Head Loss With High Flow
Dimension (All Dimensions are in mm)
Model No. | Port Size | Diagram No. | A | B | C | D | E | E1 |
---|---|---|---|---|---|---|---|---|
MNN203BNEV0 | ½” | 54.1 | 70 | 108 | 94 | 58 | 44 | 57 |
MNN303BNEV0 | ¾” | 54.1 | 114 | 110 | 94 | 58 | 44 | 57 |
MNN413BNEV0 | 2” | 54.1 | 107 | 122 | 101 | 77 | 44 | 57 |
