Pilot Operated Diaphragm Type Plastic Solenoid Valve with Flow Controller (NC)
Pilot Operated Diaphragm Type Plastic Solenoid Valve with Flow Controller (NC)
Our Products
Specifications
Port:
Refer below technical data sheet ( BSP/NPT)
End Connection:
Screwed
Body Material:
Nylon GF
Diaphragm:
Natural Rubber
Max Media Temp:
5°C to 50°C
Circumstance Temp:
-10°C to 50°C
Media:
Water
Coil Housing:
IP65 Epoxy square coil, IP65 Metallic round enclosure, IP68 Weatherproof enclosure
Note:
Use of filter in the inlet port is recommended.
operating voltage:
| 24AC | 24DC | 12DC |
power consumption:
| 8W | 8W | 8W |
coil features:
High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Other Specification Data:
Available on Request

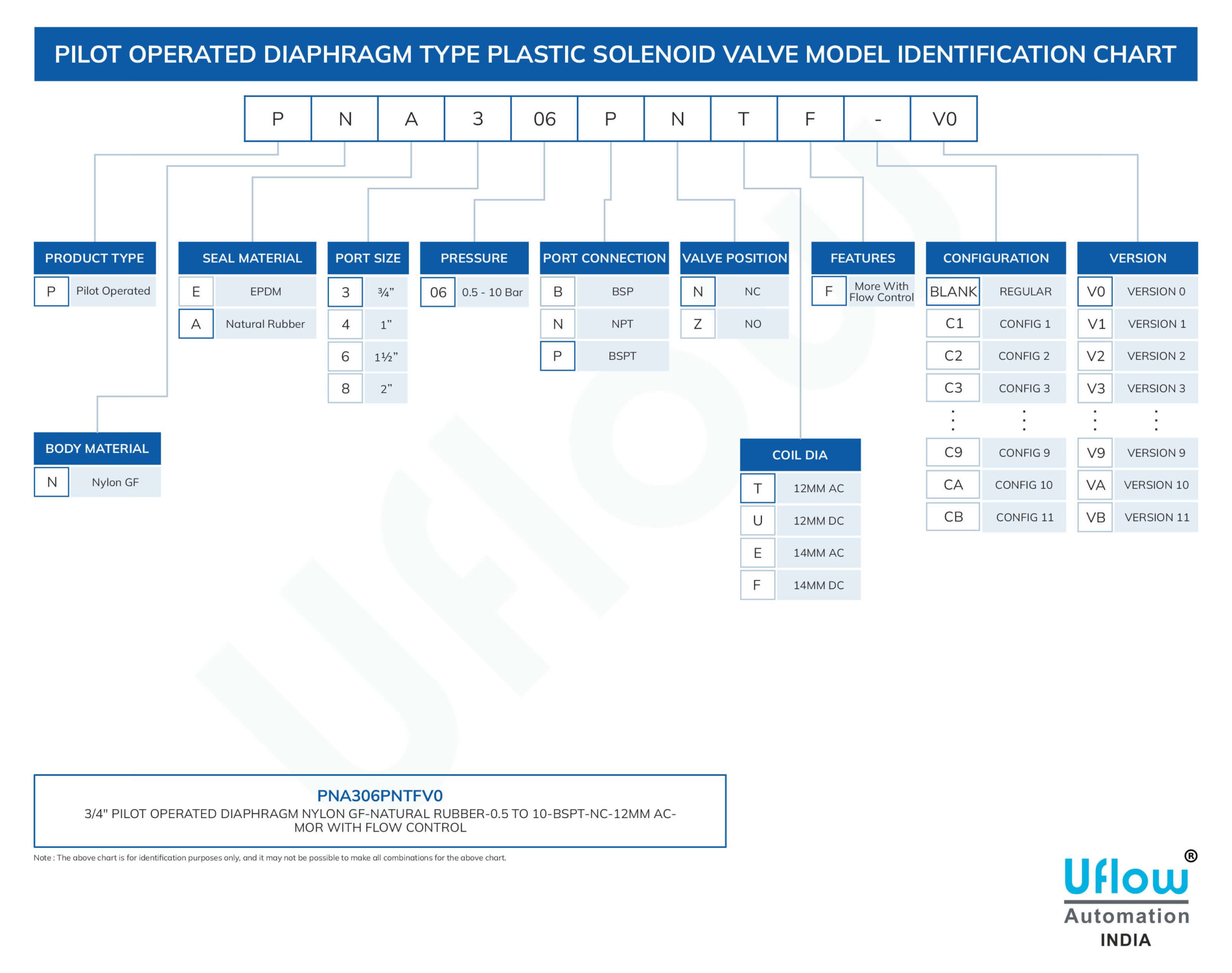

Technical Data
| Model No. | Body Material | Pipe (Inch) | Orific (mm) | Min. Operating Pressure mbar | Max. Operating Pressure bar | Seal & Diaphragm Material | Flow Factor Kv m³ / hr |
|---|---|---|---|---|---|---|---|
| PNN306BNTFV0 | Nylon GF | ¾” | 20 | 0.5 | 10 | Natural Rubber | 8 |
| PNN406BNTFV0 | Nylon GF | 1” | 25 | 0.5 | 10 | Natural Rubber | 12 |
| PNN606BNEFV0 | Nylon GF | 1½” | 40 | 0.5 | 10 | Natural Rubber | 23 |
| PNN806BNEFV0 | Nylon GF | 2” | 52 | 0.5 | 10 | Natural Rubber | 38 |
Dimension (All Dimensions are in mm)
| Model No. | Port Size | Diagram No. | A | B | C |
|---|---|---|---|---|---|
| PNN306BNTFV0 | ¾” | 55.1 | 108 | 110 | 81 |
| PNN406BNTFV0 | 1” | 55.1 | 114 | 110 | 81 |
| PNN606BNEFV0 | 1½” | 55.1 | 180 | 160 | 126 |
| PNN806BNEFV0 | 2” | 55.1 | 190 | 170 | 126 |
Feature
- Inbuilt Flow Control Capabilities.
- Manual Override in All The Valve.
- Pressure Below Seat to Reduce Water Hummer
- Low Head Loss With High Flow
